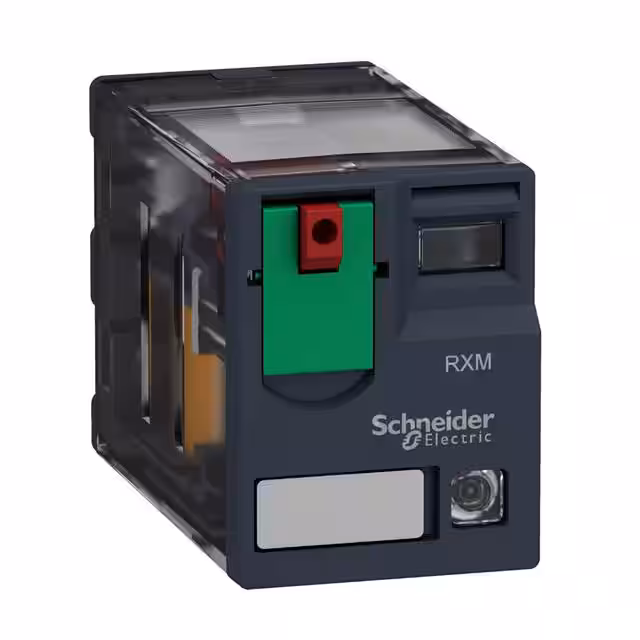

RXM4AB2P7

Manufacturer :

Schneider Electric

Product Category :

Power Relays, Over 2 Amps

Type :

RXM4AB2P7

Rated control supply voltage at AC 50 Hz :

230 - 230

Coil Type :

-

RoHS :

Details

Electrical lifespan :

100000 cycles

Operating Temperature :

-40°C ~ 55°C

Switching Current :

8A

Mount :

DIN Rail, Flanges

Termination :

PLUG

Relay Type :

GENERAL PURPOSE

Product Status :

Active

Contact Current :

6A

Brand :

Schneider Electric

Mounting Type :

Plug In

Product :

Industrial Relays

Coil Current :

15.3 mA

Width :

21mm

Coil Resistance :

1440Ω

Resistance (coil) :

15000Ω

Subcategory :

Relays

Depth :

40mm

Coil Power :

1.2W

Max. temperature :

+55°C

Contact Current Rating :

8 A

Max Operating Temperature :

55 °C

Coil nominal voltage :

230V ac

Type of electric connection :

Plug-in connection

Dim :

(W x H x D) 21 x 27 x 40 mm

Must Release Voltage :

34.5 VAC

Mounting Style :

Plug In

Length :

21mm

Operate Time :

20 ms

Throw Configuration :

4PDT

Contact Resistance :

100 mΩ

Nominal current :

6

Number of contacts as normally closed contact :

0

REACH SVHC :

Unknown

With detachable clamps :

No

Manufacturer :

Schneider Electric

Min Operating Temperature :

-40 °C

Max. switching capacity :

1500VA

Product Category :

Industrial Relays

Weight :

37g

Standards Met :

CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL

Voltage type for actuating :

AC

Contact Configuration :

4PDT

Number of Poles :

4

Contact Material :

Silver

Number of contacts as normally open contact :

0

Switching voltage (max.) :

250V AC

Rated control supply voltage at AC 60 Hz :

230 - 230

Min. temperature :

-40°C

Features :

+ test button,+ LED

Product Type :

Industrial Relays

Fall time :

20ms

Number of contacts as change-over contact :

4

Coil Voltage :

230V ac

Connection :

Pin terminal (flat)

Package :

Box

Coil Termination :

Plug Pin

Switching current (max.) :

6A

Height :

27mm

Switching Voltage :

120 VAC

Current Rating :

6 A

Degree of protection (IP) :

IP40

Material of contact surface :

Other

Must Operate Voltage :

184 VAC

Contact Rating (Current) :

5 A

Series :

RXM

Coil Voltage (AC) :

230 V

Max. pick-up voltage :

253V AC

Seal Rating :

-

Terminal Type :

Plug In

Contact Form :

4PDT (4 Form C)

Min. pick-up voltage :

184V AC

Durability :

1000 0000 cycles

Content :

1pc(s)

Coil Insulation :

-

Release Time :

20 ms

Contact Termination :

Quick Connect

Termination Style :

Plug In

Material contact :

Other
