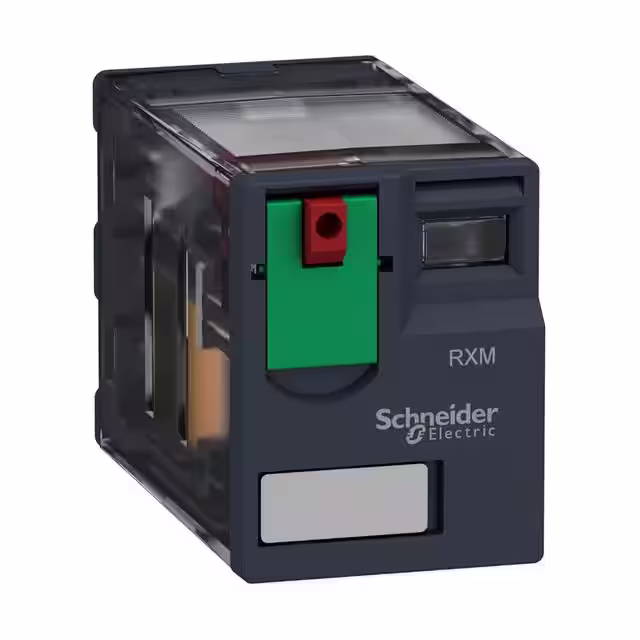

RXM4GB1F7
Or copy the link below:
- Mfr.Part #
- RXM4GB1F7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 8
- In Stock ：
- 8
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Depth :
- 47.7mm
- Package :
- Box
- Coil Resistance :
- 3630Ω
- Coil Type :
- Non-Latching
- Brand :
- Schneider Electric
- Number of Poles :
- 4
- Width :
- 21 mm
- Operate Time :
- 20 ms
- Release Time :
- 20 ms
- Switching Current :
- 3A
- Operating Temperature :
- -40°C ~ 55°C
- Coil Voltage :
- 120V AC
- Features :
- Test Button
- Terminal Type :
- Plug In
- Termination Style :
- Plug In
- Contact Current Rating :
- 3 A
- Min Operating Temperature :
- -40 °C
- Contact Termination :
- Quick Connect
- Type :
- Harmony Relay
- Termination :
- Quick Connect
- Mount :
- DIN Rail, PCB
- Product Category :
- Industrial Relays
- RoHS :
- Details
- Coil Power :
- 1.2W
- Subcategory :
- Relays
- Seal Rating :
- -
- Throw Configuration :
- 4PDT
- Coil Voltage (AC) :
- 120 V
- Weight :
- 36.00001 g
- Current Rating :
- 3 A
- Coil Insulation :
- -
- IP Rating :
- IP40
- Mounting Type :
- Plug In
- Manufacturer :
- Schneider Electric
- Coil Termination :
- Plug Pin
- Product :
- Industrial Relays
- Contact Configuration :
- 4PDT
- Contact Rating (Current) :
- 3 A
- Max Operating Temperature :
- 55 °C
- Height :
- 27mm
- Relay Type :
- GENERAL PURPOSE
- Product Type :
- Industrial Relays
- Product Status :
- Active
- Contact Form :
- 4PDT (4 Form C)
- Must Operate Voltage :
- 96 VAC
- Coil Current :
- 33.1 mA
- Must Release Voltage :
- 18 VAC
- Mounting Style :
- Plug In
- Contact Material :
- Gold
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Switching Voltage :
- 120 VAC
- Length :
- 21mm
- Series :
- RXM
- Datasheets
- RXM4GB1F7
