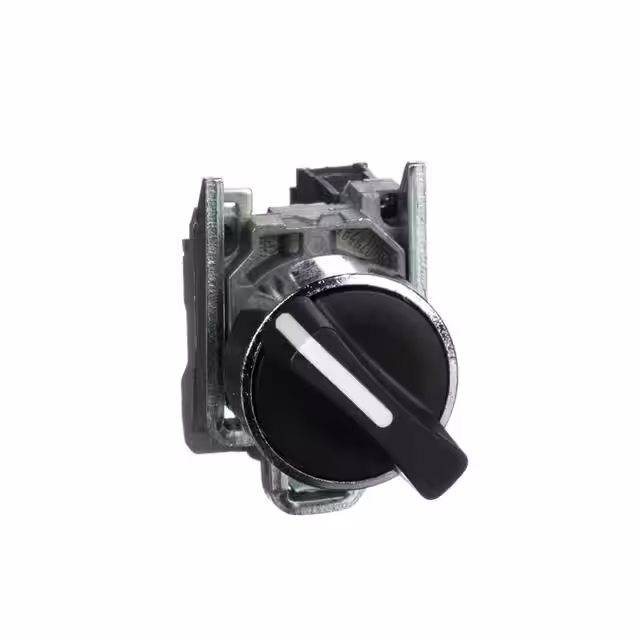

XB4BD21

Manufacturer :

Schneider Electric

Product Category :

Connection :

Screws

Dim :

(W x H x D) 30 x 47 x 68 mm

Width :

30mm

Package :

Box

Actuator :

Round

Lighting type :

NONE

Angle of Throw :

90°

Shape :

Round

Recess diameter :

22.5mm

Height :

47mm

Switching current (max.) :

6A

With light source :

No

Product Type :

Rotary Switches

Current Rating :

10 A

Voltage Rating - AC :

120 V

Contact Configuration :

SPST

Product Category :

Rotary Switches

Product Status :

Active

Material front ring :

Metal

Termination Style :

Screw Terminal

Number of contacts as normally closed contact :

0

Switching angle :

2 x 90 °

Voltage Rating - DC :

125 V

Panel Cutout Dimensions :

Circular - 22.00mm Dia

IP Rating :

IP67, IP69K

RoHS :

Details

Mounting Type :

Panel Mount

Number of Positions :

2

Switch Function :

Off-On

Illumination Type, Color :

-

Illumination Color :

-

Manufacturer :

Schneider Electric

Lamp Type :

-

Degree of protection (NEMA) :

13

Terminal Type :

Screw

Colour front ring :

Chrome

Current Rating (Amps) :

6A (AC), 550mA (DC)

With front ring :

yes

Functions :

Latch

Min. temperature :

-40°C

Unlocking mechanism :

Turn

Illumination Voltage (Nominal) :

-

Number of contacts as normally open contact :

1

Circuit :

SPST-NO

Weight :

0.105kg

Number of contacts as change-over contact :

0

Subcategory :

Switches

Depth :

68mm

Depth Behind Flange :

-

Degree of protection (IP) :

IP67/IP69K

Operating Temperature :

-40°C ~ 70°C

Series :

Harmony XB4

Type of control element :

Short thumb-grip

Approval Agency :

CSA, UL

Actuator Type :

Knob

Type of electric connection :

Screw connection

Illumination :

Non-Illuminated

Ingress Protection :

IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

Body Material :

Chromium Plated Metal (Bezel)

Content :

1pc(s)

Type :

Standard

Features :

-

Electrical Life :

1,000,000 Cycles

Operation type :

ROTARY SWITCH

Brand :

Schneider Electric

Mechanical Life :

1,000,000 Cycles

Print motif :

NONE

Max. temperature :

+70°C
