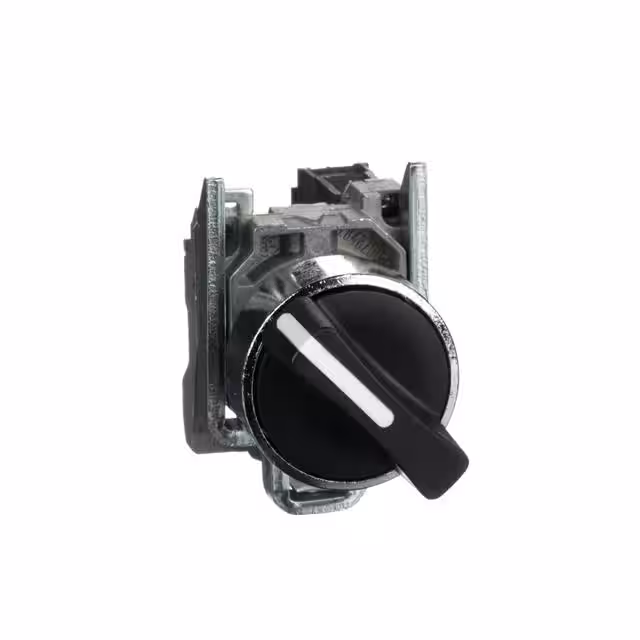

XB4BD41

Manufacturer :

Schneider Electric

Product Category :

Package :

Box

Illumination :

Non-Illuminated

IP Rating :

IP67, IP69, IP69K

Actuator Type :

Knob

Number of Positions :

2

Illumination Voltage (Nominal) :

-

With light source :

No

Number of contacts as normally open contact :

1

Switch Function :

Off-On

Ingress Protection :

IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

Termination Style :

Screw

Colour front ring :

Chrome

Product :

Hardware

Terminal Type :

Screw

Reach Compliance Code :

Unknown

Type of electric connection :

Screw connection

Subcategory :

Switch Accessories

Product Category :

Industrial Panel Mount Indicators / Switch Indicators

Type :

Standard

Voltage Rating :

600 VAC, 600 VDC

For Use With :

22 mm Pushbutton Switches

Angle of Throw :

90°

Mounting Type :

Panel Mount

Circuit :

SPST-NO

With front ring :

yes

Panel Cutout Dimensions :

Circular - 22.00mm Dia

Mechanical Life :

1,000,000 Cycles

Depth Behind Flange :

-

Material front ring :

Metal

Voltage Rating - DC :

125 V

Product Type :

Panel Mount Indicators / Switch Indicators

Degree of protection (NEMA) :

Other

Number of contacts as normally closed contact :

0

Operating Temperature :

-40°C ~ 70°C

Manufacturer :

Schneider Electric

RoHS :

Details

Brand :

Schneider Electric

Series :

Harmony XB4

Maximum Operating Temperature :

+ 70 C

Approval Agency :

CSA, UL

Features :

-

Voltage Rating - AC :

120 V

Electrical Life :

1,000,000 Cycles

Product Status :

Active

Illumination Type, Color :

-

Number of contacts as change-over contact :

0

Switch Type :

ROTARY SWITCH

Current Rating (Amps) :

6A (AC), 550mA (DC)

Type of control element :

Short thumb-grip

Mounting Style :

Panel Mount

Contact Configuration :

SPST

Minimum Operating Temperature :

- 40 C

Degree of protection (IP) :

IP67
