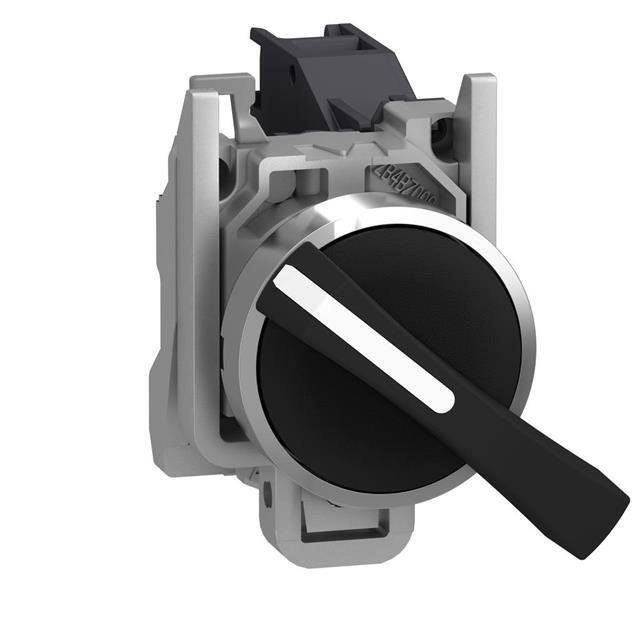

XB4BJ33

Manufacturer :

Schneider Electric

Product Category :

Operating Temperature :

-40°C ~ 70°C

Illumination Type, Color :

-

Control Type :

Selector

Terminal Type :

Screw

Subcategory :

Switches

Minimum Operating Temperature :

- 40 C

Illumination Voltage (Nominal) :

-

Voltage Rating - AC :

120 V

Brand :

Schneider Electric

Series :

Harmony XB4

Electrical Life :

1,000,000 Cycles

Illumination :

Non-Illuminated

Mechanical Life :

1,000,000 Cycles

Termination Type :

Screw

Switch Function :

Off-On

Features :

-

Surface Mount :

No

HTS Code :

8536.50.90.20

Termination Style :

Screw Terminal

Switch Action :

LATCHED

Approval Agency :

CSA, UL

Contact Current(AC)-Max :

6 A

Panel Cutout Dimensions :

Circular - 22.00mm Dia

Current Rating (Amps) :

6A (AC), 550mA (DC)

Number of Switch Sections :

1

Actuator :

Round

RoHS :

Details

Voltage Rating - DC :

125 V

Number of Positions :

3

Ingress Protection :

IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

ECCN Code :

EAR99

Type :

Standard

Depth :

70mm

Angle of Throw :

45°

Width :

30mm

Package :

Box

Circuit :

DPST-NO

Reach Compliance Code :

Unknown

Mounting Type :

Panel Mount

Actuator Type :

Long Handle Black

Sealing :

IK06; IP69K

Additional Feature :

REFERENCE STANDARD: RINA; UL

Product Type :

Control Switches

Product Category :

Control Switches

Lamp Type :

-

Switch Type :

ROTARY SWITCH

Length :

51.3mm

IP Rating :

IP67, IP69, IP69

Contact Voltage(DC)-Max :

125 V

Dimensions :

51.3 x 30 x 70mm

Maximum Operating Temperature :

+ 70 C

Mounting Style :

Panel Mount

Contact Current(DC)-Max :

0.55 A

Depth Behind Flange :

-

Current Rating :

270 mA

Actuator Style :

Round

Product Status :

Active

Manufacturer :

Schneider Electric

Mounting Feature :

Panel Mount

Contact Voltage(AC)-Max :

120 V
