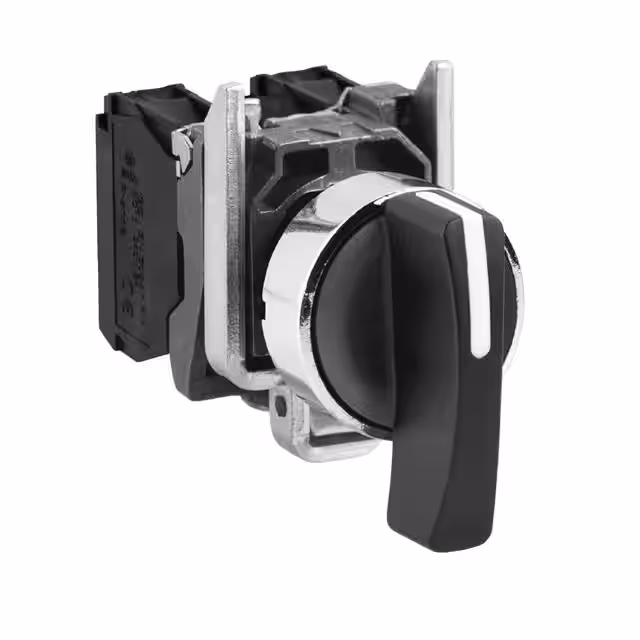

XB4BJ53

Manufacturer :

Schneider Electric

Product Category :

Switch Function :

Off-On

Width :

30mm

Mechanical Life :

1,000,000 Cycles

Type of control element :

Long turning handle

Control Type :

Selector

Reach Compliance Code :

Unknown

Terminal Type :

Screw

Angle of Throw :

45°

Dimensions :

51.3 x 30 x 70mm

Mounting Type :

Panel Mount

Operating Temperature :

-40°C ~ 70°C

Approval Agency :

CSA, UL

Type :

Standard

Features :

-

Colour front ring :

Chrome

Switch Type :

ROTARY SWITCH

Product Status :

Active

Current Rating (Amps) :

6A (AC), 550mA (DC)

Voltage Rating - AC :

120 V

With light source :

No

Illumination Type, Color :

-

Manufacturer :

Schneider Electric

Subcategory :

Switches

Depth :

70mm

Contact Form :

SPDT

Number of contacts as change-over contact :

0

Type of electric connection :

Screw connection

Depth Behind Flange :

-

Product Category :

Control Switches

Ingress Protection :

IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

Number of contacts as normally closed contact :

0

Degree of protection (IP) :

IP67/IP69K

Electrical Life :

1,000,000 Cycles

Package :

Box

Lamp Type :

-

Degree of protection (NEMA) :

13

Termination Style :

Screw Terminal

Brand :

Schneider Electric

Current Rating :

10 A

Illumination Color :

-

Material front ring :

Metal

Length :

51.3mm

Voltage Rating - DC :

125 V

Number of contacts as normally open contact :

2

Voltage Rating :

600 VAC/DC

RoHS :

Details

Circuit :

DPST-NO

Product Type :

Control Switches

Number of Positions :

3

With front ring :

yes

Panel Cutout Dimensions :

Circular - 22.00mm Dia

Illumination Voltage (Nominal) :

-

Illumination :

Non-Illuminated

Series :

Harmony XB4
