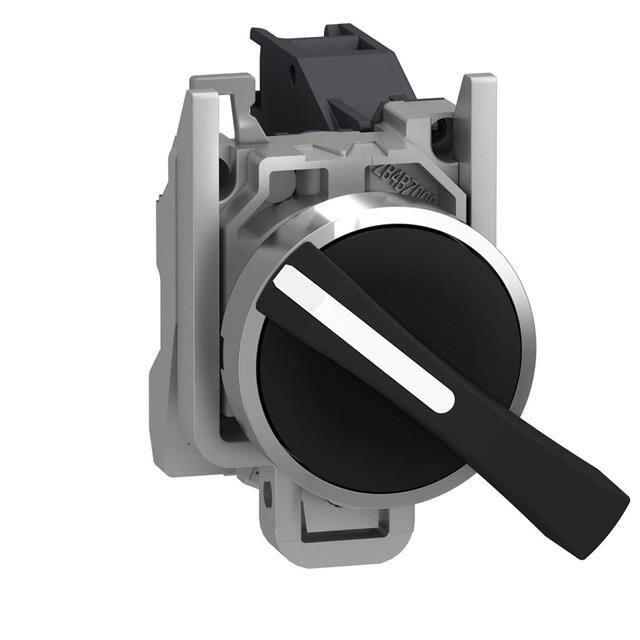

XB4BJ21

Manufacturer :

Schneider Electric

Product Category :

Mounting Style :

Panel Mount

Control Type :

Selector

With light source :

No

Illumination :

Non Illuminated

Voltage Rating :

600 VAC, 600 VDC

Dimensions :

51.3 x 30 x 70mm

Subcategory :

Switches

Ingress Protection :

IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

Termination Style :

Screw

Switch Function :

Off-On

Material front ring :

Metal

Illumination Type, Color :

-

Number of Positions :

2

Mechanical Life :

1,000,000 Cycles

Approval Agency :

CSA, UL

Voltage Rating - AC :

120 V

Manufacturer :

Schneider Electric

Terminal Type :

Screw

Product Category :

Control Switches

Angle of Throw :

90°

Circuit :

SPST-NO

Length :

51.3mm

Reach Compliance Code :

Unknown

Type of electric connection :

Screw connection

Product Type :

Control Switches

IP Rating :

IP67, IP69, IP69K

With front ring :

yes

Minimum Operating Temperature :

- 40 C

Mounting Type :

Panel Mount

Operating Temperature :

-40°C ~ 70°C

Width :

30mm

Type :

Standard

Panel Cutout Dimensions :

Circular - 22.00mm Dia

Actuator Type :

Long Handle Black

Number of contacts as change-over contact :

0

Series :

Harmony XB4

Switch Type :

ROTARY SWITCH

Illumination Voltage (Nominal) :

-

Product Status :

Active

Depth Behind Flange :

-

Number of contacts as normally closed contact :

0

Degree of protection (NEMA) :

13

Current Rating (Amps) :

6A (AC), 550mA (DC)

Features :

-

Package :

Box

Colour front ring :

Chrome

Number of contacts as normally open contact :

1

Depth :

70mm

Voltage Rating - DC :

125 V

Degree of protection (IP) :

IP67/IP69K

Maximum Operating Temperature :

+ 70 C

RoHS :

Details

Electrical Life :

1,000,000 Cycles

Type of control element :

Long turning handle

Brand :

Schneider Electric
