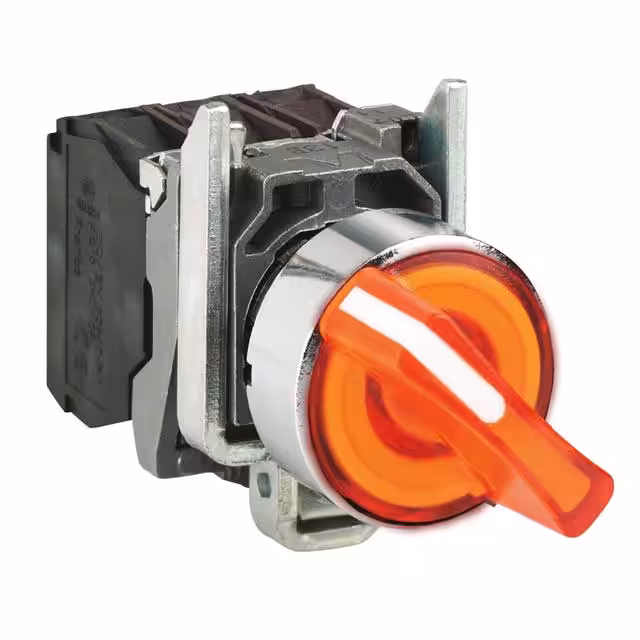

XB4BK125B5

Manufacturer :

Schneider Electric

Product Category :

Product Category :

Industrial Panel Mount Indicators / Switch Indicators

Package :

Box

Manufacturer :

Schneider Electric

Width :

30mm

Number of Positions :

2

Dimensions :

46.5 x 30 x 70mm

Illumination Color :

Orange

Illumination Voltage (Nominal) :

24 VAC/DC

Mounting Style :

Panel Mount

Voltage Rating :

24 VAC, 24 VDC

Termination Style :

Screw Terminal

Circuit :

DPST-NO/NC

Length :

46.5mm

Subcategory :

Switch Accessories

Angle of Throw :

90°

Mounting Type :

Panel Mount

Product Type :

Panel Mount Indicators / Switch Indicators

Ingress Protection :

IP65 - Dust Tight, Oil and Water Resistant

Mechanical Life :

1,000,000 Cycles

Terminal Type :

Screw

Depth :

70mm

IP Rating :

IP66, IP67, IP69, IP69K

Switch Type :

ROTARY SWITCH

Panel Cutout Dimensions :

Circular - 22.00mm Dia

Height :

47 mm

Brand :

Schneider Electric

Depth Behind Flange :

-

Current Rating (Amps) :

6A (AC), 550mA (DC)

Switch Function :

On-Off, Off-On

Maximum Operating Temperature :

+ 70 C

Reach Compliance Code :

Unknown

RoHS :

Details

Minimum Operating Temperature :

- 40 C

Series :

Harmony XB4

Product Status :

Active

Illumination Type, Color :

LED, Orange

Electrical Life :

1,000,000 Cycles

Voltage Rating - DC :

125 V

Features :

-

Operating Temperature :

-40°C ~ 70°C

Type :

Standard

Voltage Rating - AC :

120 V

Illumination :

Illuminated

Approval Agency :

CCC, CSA, UL
