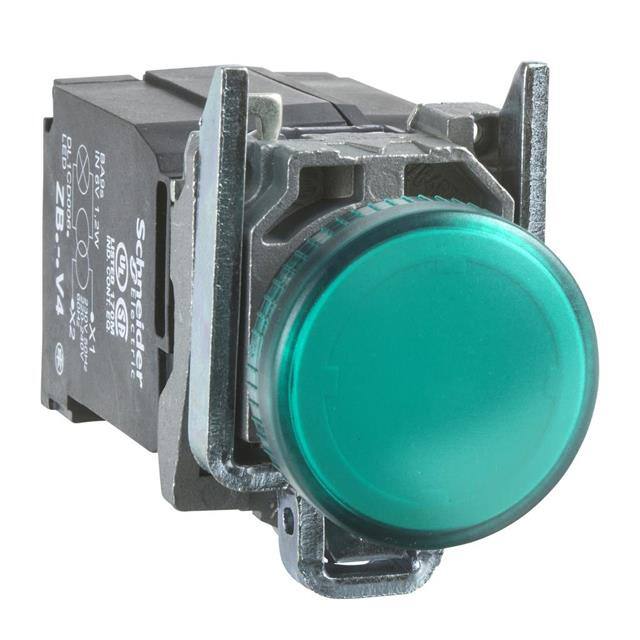

XB4BV33

Manufacturer :

Schneider Electric

Product Category :

Lens Style :

Round with Convex Top

Subcategory :

Switch Accessories

Illumination :

Incandescent

Lens Color :

Green

Viewing Angle :

-

Width :

30 mm

Wavelength - Peak :

-

Material front ring :

Metal

Body Material :

Metal

Height :

47 mm

Type of lens :

Flat

RoHS :

Details

Brand :

Schneider Electric

Product :

Indicators

Type of electric connection :

Screw connection

Illumination Color :

Green

For Use With :

22 mm Pushbutton Switches

Manufacturer :

Schneider Electric

Rated operating voltage Ue :

110 - 120

Product Type :

Panel Mount Indicators / Switch Indicators

Type :

Incandescent

Maximum Operating Temperature :

+ 55 C

Current :

-

Construction type lens :

Round

With front ring :

yes

Voltage :

110V ~ 120V

Voltage Rating :

120V AC

Termination Style :

Screw Terminal

Ingress Protection :

IP66, IP67, IP69, IP69K, NEMA 4X, 13

Degree of protection (IP) :

IP66

Length :

78 mm

Millicandela Rating :

-

Features :

-

Lens Size :

30.00mm Dia

Mounting Style :

Panel Mount

Product Category :

Industrial Panel Mount Indicators / Switch Indicators

Panel Cutout Shape :

Round

Package :

Box

Lamp Color :

-

Ratings :

AC

Colour lens :

Green

Mounting Type :

Panel Mount

Type of lamp socket :

BA9s

IP Rating :

IP66, IP67, IP69, IP69K

Colour front ring :

Chrome

Terminal Type :

Screw

Lens Transparency :

-

Panel Cutout Dimensions :

0.87" (22.00mm)

Number of indicator lights :

1

Degree of protection (NEMA) :

Other

Product Status :

Active

Minimum Operating Temperature :

- 40 C

With light source :

yes

Series :

Harmony XB4

Voltage type :

AC/DC
