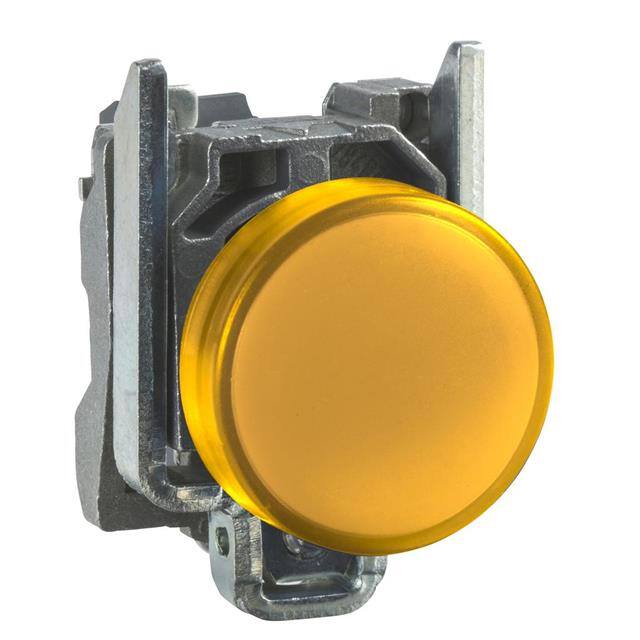

XB4BVB5

Manufacturer :

Schneider Electric

Product Category :

Operating Voltage :

24V

Lamp Color :

-

Minimum Operating Temperature :

- 40 C

Lamp Type :

LED

IP Rating :

IP66, IP67, IP69, IP69K

Dim :

(W x H x D) 30 x 47 x 54 mm

Ratings :

AC/DC

Mounting Type :

Panel Mount

Series :

Harmony XB4

Lens Color :

Orange

Terminal Type :

Screw

Current :

18mA

RoHS :

Details

Colour lens :

Orange

Rated operating voltage Ue :

24 - 24

Illumination :

LED

Ingress Protection :

IP66, IP67, IP69, IP69K, NEMA 4X, 13

Termination Style :

Screw Terminal

Product Status :

Active

Brand :

Schneider Electric

Viewing Angle :

-

Manufacturer :

Schneider Electric

Package :

Box

Type of lens :

Flat

Panel Cutout Shape :

Round

Voltage :

24V

Degree of protection (NEMA) :

13

Colour front ring :

Chrome

Number of indicator lights :

1

Type of lamp socket :

LED

Width :

30mm

Luminous Intensity :

-

Construction type lens :

Round

Features :

-

Recess diameter :

22.5mm

Mounting Style :

Panel Mount

For Use With :

22 mm Pushbutton Switches

Height :

47mm

Mounting Hole Dia :

22mm

Illumination Color :

Orange

Material front ring :

Metal

Degree of protection (IP) :

IP66

With light source :

yes

Product Category :

Industrial Panel Mount Indicators / Switch Indicators

Length :

54 mm

Product Type :

Panel Mount Indicators / Switch Indicators

Type of electric connection :

Screw connection

Millicandela Rating :

-

Lens Transparency :

-

Body Material :

Metal

Lens Size :

30.00mm Dia

Type :

LED

Lens Style :

Round with Convex Top

Subcategory :

Switch Accessories

Content :

1pc(s)

Connection :

Screws

Vf - Forward Voltage :

24 VAC, 24 VDC

Depth :

54mm

Product :

Indicators

Panel Cutout Dimensions :

0.87" (22.00mm)

Wavelength - Peak :

-

Voltage type :

AC/DC

Voltage Rating :

24V AC/DC

Energy efficiency rating :

n.rel.

With front ring :

yes

Maximum Operating Temperature :

+ 70 C
