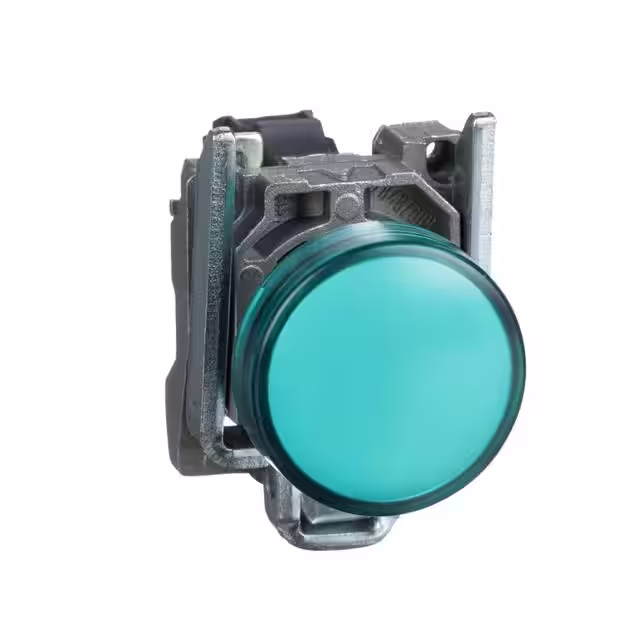

XB4BVG3

Manufacturer :

Schneider Electric

Product Category :

Length :

54 mm

Construction type lens :

Round

Brand :

Schneider Electric

Product :

Indicators

Material front ring :

Metal

Illumination :

LED

Rated operating voltage Ue :

110 - 120

Mounting Style :

Panel Mount

Voltage Rating :

120V AC

Illumination Color :

Green

Manufacturer :

Schneider Electric

Width :

30 mm

Subcategory :

Switch Accessories

Ingress Protection :

IP66, IP67, IP69, IP69K, NEMA 4X, 13

Series :

Harmony XB4

Maximum Operating Temperature :

+ 70 C

Mounting Type :

Panel Mount

Terminal Type :

Screw

Current :

14mA

Colour lens :

Green

Product Type :

Panel Mount Indicators / Switch Indicators

Type of lamp socket :

LED

Product Status :

Active

Lens Color :

Green

IP Rating :

IP66, IP67, IP69, IP69K

Lens Style :

Round with Convex Top

Number of indicator lights :

1

Wavelength - Peak :

-

Voltage type :

AC

Panel Cutout Dimensions :

0.87" (22.00mm)

Type :

LED

Degree of protection (NEMA) :

13

Features :

-

Lamp Type :

LED

Viewing Angle :

-

For Use With :

22 mm Pushbutton Switches

Colour front ring :

Chrome

With front ring :

yes

Type of lens :

Flat

Lamp Color :

-

Degree of protection (IP) :

IP66

Voltage :

110V ~ 120V

Height :

47 mm

Minimum Operating Temperature :

- 40 C

Panel Cutout Shape :

Round

RoHS :

Details

Package :

Box

Body Material :

Metal

Lens Transparency :

-

Type of electric connection :

Screw connection

Ratings :

AC

Lens Size :

30.00mm Dia

Termination Style :

Screw Terminal

With light source :

yes

Millicandela Rating :

-

Product Category :

Industrial Panel Mount Indicators / Switch Indicators
