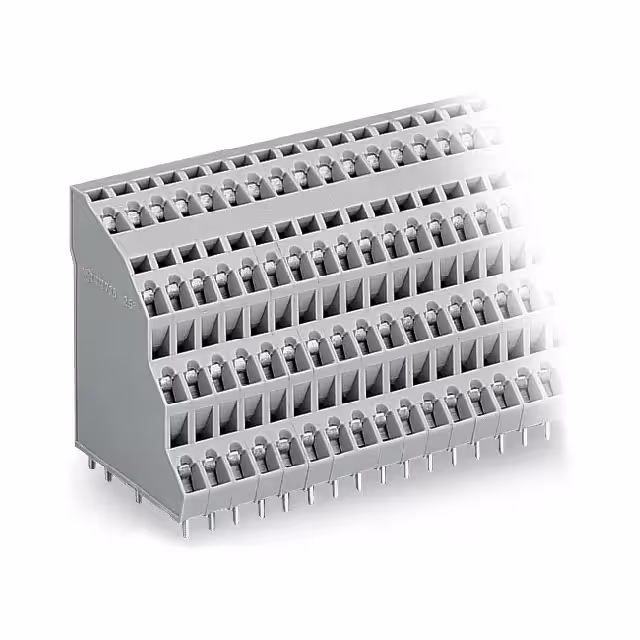

738-103

Manufacturer :

WAGO

Product Category :

Wire to Board

Product Status :

Active

Stripping length (max.) :

6mm

Wire Gauge :

12-28 AWG

Manufacturer :

Wago

CS :

5mm

Positions Per Level :

12

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Clamp Material - Plating :

Steel - Nickel Plated

No. of rows :

1

Screw Thread :

-

Housing Color :

Grey

Over voltage category :

III

Pins per row :

3

Housing Material :

Polyamide (PA66), Nylon 6/6

Automotive :

No

Features :

+ CAGE CLAMP®

Connection :

Spring-loaded terminal,Print

Manufacturer part # :

738-103

Length :

16.00mm

Contact Material :

Copper, Tin

Cross section (inflexible) (max.) :

2.50mm²

Approvals :

cURus;CSA

EU RoHS :

Compliant

AWG max. :

12

Rated surge voltage :

4

Number of Rows :

1

Min. stripping length :

18mm

Wire protection :

yes

HTS :

8536.90.40.00

Cross section (inflexible) (min.) :

0.08mm²

Pitch :

0.197 (5.00mm)

Series :

738

Inflammability class of insulation material according to with UL94 :

V0

AWG (min.) :

28

Width :

48.20mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Connectable conductor cross section multi-wired :

0.08 - 2.5

Current :

10 A

Content :

48pc(s)

Temperature Range :

-76 to 221 Degrees F

Flammability Rating :

UL94 V-0

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Mating Orientation :

45° (135°) Angle with Board

Connectable conductor cross section solid-core :

0.08 - 2.5

Connection Type :

Spring Clamp

Type :

738-103

Pollution degree :

2

Packaging type :

Other

Cross section (flexible) (max.) :

2.50mm²

Industrial packaging :

yes

Height :

37.50mm

Mounting Type :

PCB Mount

Screw Material - Plating :

-

Voltage :

300 V

Rated current In :

18

Number of Poles :

3

Number of Pins :

12

Number of Levels :

4

Nominal voltage :

320V

Cross section (flexible) (min.) :

0.08mm²

Torque - Screw :

-

Pin Length :

4 MilliMeters

Package :

Box

Operating Temperature :

-60°C ~ 105°C

PPAP :

No

Color :

Gray

RoHS :

yes

ECCN (US) :

EAR99

Type of fastening :

Solder

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Composition :

Polyamide
