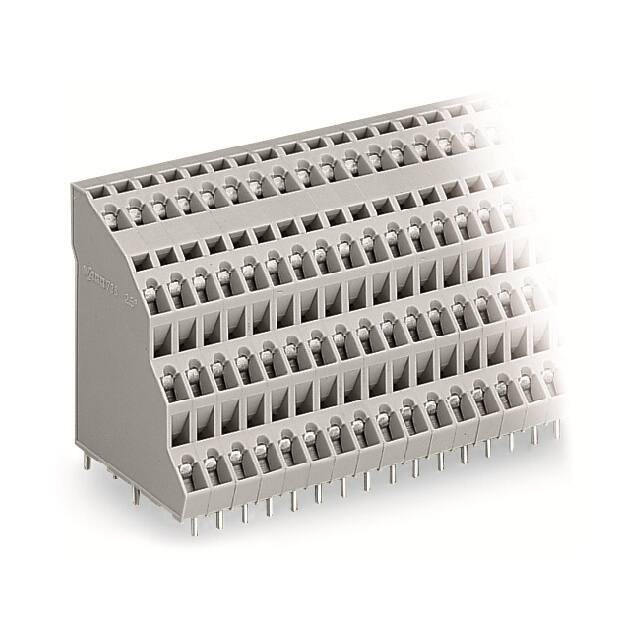

738-204

Manufacturer :

WAGO

Product Category :

Wire to Board

Clamp Material - Plating :

Steel - Nickel Plated

Screw Thread :

-

Mounting Type :

PCB Mount

Type :

738-204

Number of Levels :

4

Package :

Box

Wire Gauge :

12-28 AWG

Current :

10 A

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Stripping length (max.) :

6mm

Composition :

Polyamide

Pin Length :

4 MilliMeters

Packaging type :

Other

Series :

738

Temperature Range :

-76 to 221 Degrees F

Connection Type :

Spring Clamp

Number of Poles :

4

Voltage :

300 V

Over voltage category :

III

Pitch :

0.197 (5.00mm)

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

AWG max. :

12

Cross section (inflexible) (max.) :

2.50mm²

Height :

37.50mm

Product Status :

Active

Pollution degree :

2

Min. stripping length :

18mm

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Connectable conductor cross section solid-core :

0.08 - 2.5

Features :

+ CAGE CLAMP®

Inflammability class of insulation material according to with UL94 :

V0

Rated current In :

18

Length :

21.00mm

Content :

36pc(s)

Cross section (inflexible) (min.) :

0.08mm²

RoHS :

yes

Industrial packaging :

yes

Contact Material - Plating :

Electrolytic Copper - Tin Plated

AWG (min.) :

28

Screw Material - Plating :

-

Torque - Screw :

-

Rated surge voltage :

4

Connection :

Spring-loaded terminal,Print

CS :

5mm

Manufacturer :

Wago

Wire protection :

yes

Manufacturer part # :

738-204

Operating Temperature :

-60°C ~ 105°C

Positions Per Level :

16

Approvals :

cURus;CSA

Pins per row :

4

Housing Material :

Polyamide (PA66), Nylon 6/6

Cross section (flexible) (max.) :

2.50mm²

Cross section (flexible) (min.) :

0.08mm²

Connectable conductor cross section multi-wired :

0.08 - 2.5

Mating Orientation :

45° (135°) Angle with Board

Width :

48.20mm

Color :

Gray

No. of rows :

1

Nominal voltage :

320V

Type of fastening :

Solder
