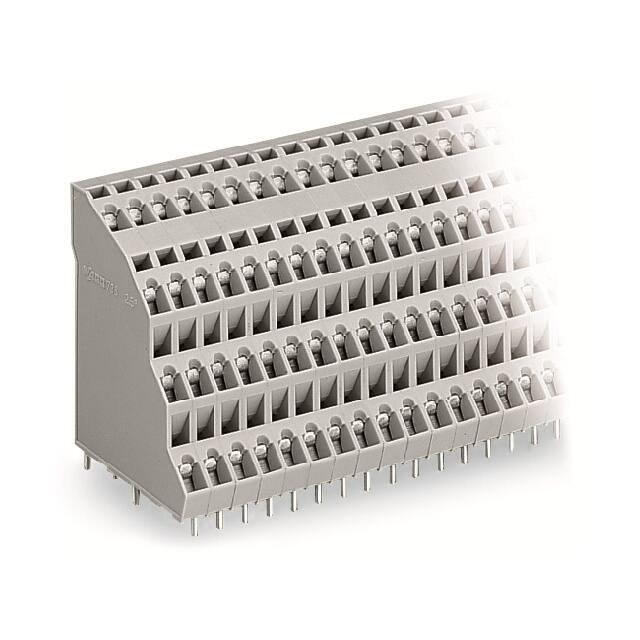

738-224

Manufacturer :

WAGO

Product Category :

Wire to Board

Temperature Range :

-76-221 °F

Manufacturer part # :

738-224

Product Status :

Active

Torque - Screw :

-

CS :

5mm

Connectable conductor cross section multi-wired :

0.08 - 2.5

Cross section (flexible) (max.) :

2.50mm²

Stripping length (max.) :

6mm

Length :

37.50mm

AWG (min.) :

28

Features :

+ CAGE CLAMP®

Connection Type :

Spring Clamp

Rated surge voltage :

4

Series :

738

Rated current In :

18

Voltage :

300 V

Industrial packaging :

yes

Operating Temperature :

-60°C ~ 105°C

No. of rows :

1

Screw Thread :

-

Approvals :

CSA, cURus

Width :

121.00mm

Composition :

Polyamide

Nominal voltage :

320V

Cross section (inflexible) (max.) :

2.50mm²

Pollution degree :

2

Inflammability class of insulation material according to with UL94 :

V0

Manufacturer :

Wago

Connectable conductor cross section solid-core :

0.08 - 2.5

Color :

Gray

Package :

Box

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Pins per row :

24

Mating Orientation :

45° (135°) Angle with Board

Type of fastening :

Solder

Packaging type :

Other

Wire protection :

yes

RoHS :

yes

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Housing Material :

Polyamide (PA66), Nylon 6/6

Screw Material - Plating :

-

Content :

6pc(s)

Cross section (inflexible) (min.) :

0.08mm²

Cross section (flexible) (min.) :

0.08mm²

Current :

10 A

Over voltage category :

III

Wire Gauge :

12-28 AWG

Pitch :

0.197 (5.00mm)

Number of Poles :

24

Number of Levels :

4

Connection :

Spring-loaded terminal,Print

Clamp Material - Plating :

Steel - Nickel Plated

Type :

738-224

Mounting Type :

PCB Mount

AWG max. :

12

Pin Length :

4 mm

Height :

48.20mm

Positions Per Level :

24

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Min. stripping length :

18mm
