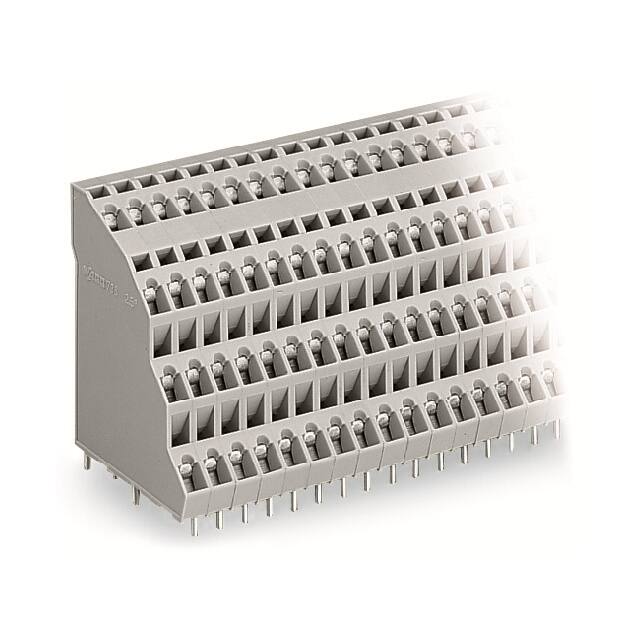

738-206

Manufacturer :

WAGO

Product Category :

Wire to Board

Screw Material - Plating :

-

AWG (min.) :

28

Stripping length (max.) :

6mm

Clamp Material - Plating :

Steel - Nickel Plated

Cross section (flexible) (min.) :

0.08mm²

Connection Type :

Spring Clamp

Type :

738-206

Temperature Range :

-76 to 221 Degrees F

No. of rows :

1

Approvals :

cURus;CSA

Cross section (flexible) (max.) :

2.50mm²

Cross section (inflexible) (min.) :

0.08mm²

Wire Gauge :

12-28 AWG

Voltage :

300 V

Manufacturer part # :

738-206

RoHS :

yes

Screw Thread :

-

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Pin Length :

4 MilliMeters

Number of Levels :

4

AWG max. :

12

Composition :

Polyamide

Length :

31.00mm

Min. stripping length :

18mm

Series :

738

Width :

48.20mm

Current :

10 A

Mating Orientation :

45° (135°) Angle with Board

Product Status :

Active

Number of Poles :

6

Manufacturer :

Wago

Industrial packaging :

yes

Housing Material :

Polyamide (PA66), Nylon 6/6

Content :

24pc(s)

Pitch :

0.197 (5.00mm)

CS :

5mm

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Operating Temperature :

-60°C ~ 105°C

Mounting Type :

PCB Mount

Wire protection :

yes

Package :

Box

Cross section (inflexible) (max.) :

2.50mm²

Nominal voltage :

320V

Torque - Screw :

-

Connection :

Spring-loaded terminal,Print

Features :

+ CAGE CLAMP®

Height :

37.50mm

Color :

Gray

Pins per row :

6

Positions Per Level :

24
