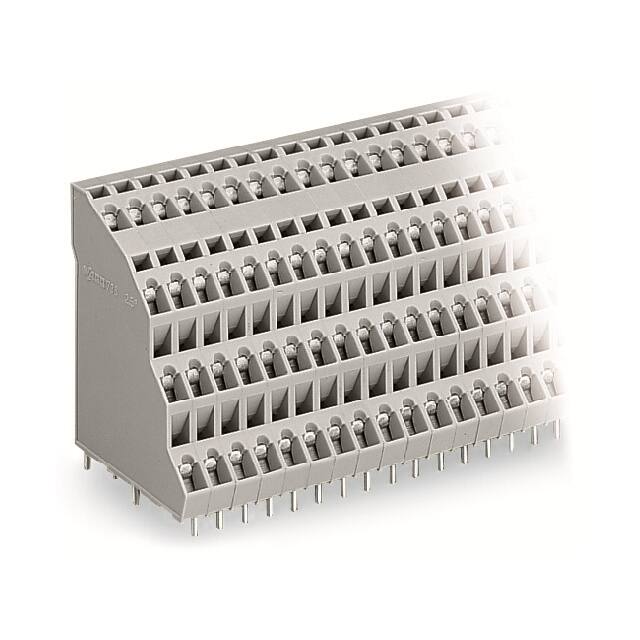

738-208

Manufacturer :

WAGO

Product Category :

Wire to Board

Packaging type :

Other

Housing Material :

Polyamide (PA66), Nylon 6/6

Manufacturer :

Wago

Torque - Screw :

-

Inflammability class of insulation material according to with UL94 :

V0

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Operating Temperature :

-60°C ~ 105°C

Type of fastening :

Solder

Approvals :

cURus;CSA

Over voltage category :

III

Screw Material - Plating :

-

Features :

-

Series :

-

Temperature Range :

-76 to 221 Degrees F

Mating Orientation :

45° (135°) Angle with Board

Screw Thread :

-

Rated current In :

18

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Connection Type :

Spring Clamp

Current :

10 A

Height :

44.2

Clamp Material - Plating :

Steel - Nickel Plated

Number of Levels :

4

Pin Length :

4 MilliMeters

Positions Per Level :

8

RoHS :

yes

Package :

Box

Mounting Type :

PCB Mount

Composition :

Polyamide

Connectable conductor cross section solid-core :

0.08 - 2.5

Number of Poles :

8

Pitch :

0.197 (5.00mm)

Rated surge voltage :

4

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Connectable conductor cross section multi-wired :

0.08 - 2.5

Wire Gauge :

12-28 AWG

Voltage :

300 V

Pollution degree :

2

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Color :

Gray

Product Status :

Active
