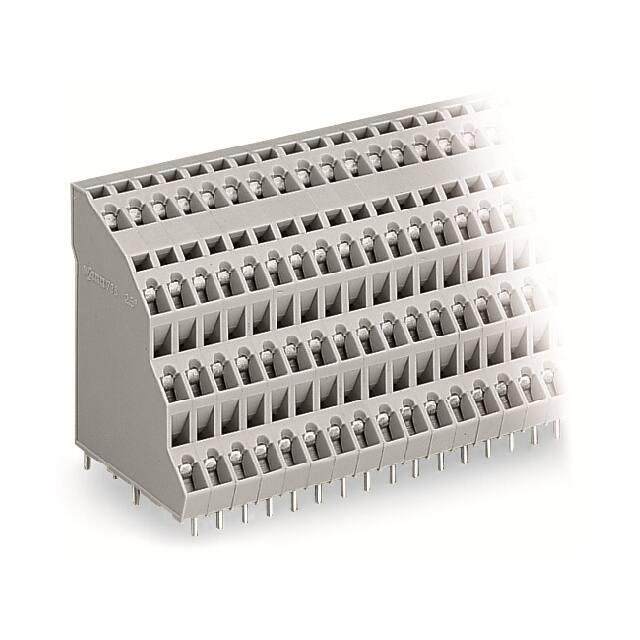

738-203

Manufacturer :

WAGO

Product Category :

Wire to Board

Screw Material - Plating :

-

Manufacturer part # :

738-203

Temperature Range :

-76 to 221 Degrees F

Pins per row :

3

Pitch :

0.197 (5.00mm)

Package :

Box

Composition :

Polyamide

Number of Poles :

3

Contact Material :

Copper, Tin

Pin Length :

4 MilliMeters

Number of Pins :

12

Connection :

Spring-loaded terminal,Print

AWG (min.) :

28

Clamp Material - Plating :

Steel - Nickel Plated

Product Status :

Active

Mounting Type :

PCB Mount

Current :

10 A

Stripping length (max.) :

6mm

Number of Levels :

4

Wire Gauge :

12-28 AWG

Housing Material :

Polyamide (PA66), Nylon 6/6

Number of Rows :

1

Screw Thread :

-

Width :

48.20mm

AWG max. :

12

Mating Orientation :

45° (135°) Angle with Board

No. of rows :

1

Positions Per Level :

12

Housing Color :

Grey

Type :

738-203

Min. stripping length :

18mm

Voltage :

300 V

Flammability Rating :

UL94 V-0

Height :

37.50mm

Wire protection :

yes

Series :

738

Torque - Screw :

-

Cross section (inflexible) (max.) :

2.50mm²

Wire Termination :

Screwless - Spring Cage, Tension Clamp

CS :

5mm

Content :

48pc(s)

Connection Type :

Spring Clamp

Color :

Gray

Features :

+ CAGE CLAMP®

Cross section (inflexible) (min.) :

0.08mm²

Nominal voltage :

320V

Industrial packaging :

yes

Manufacturer :

Wago

Cross section (flexible) (min.) :

0.08mm²

Operating Temperature :

-60°C ~ 105°C

RoHS :

yes

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Length :

16.00mm

Cross section (flexible) (max.) :

2.50mm²

Approvals :

cURus;CSA
