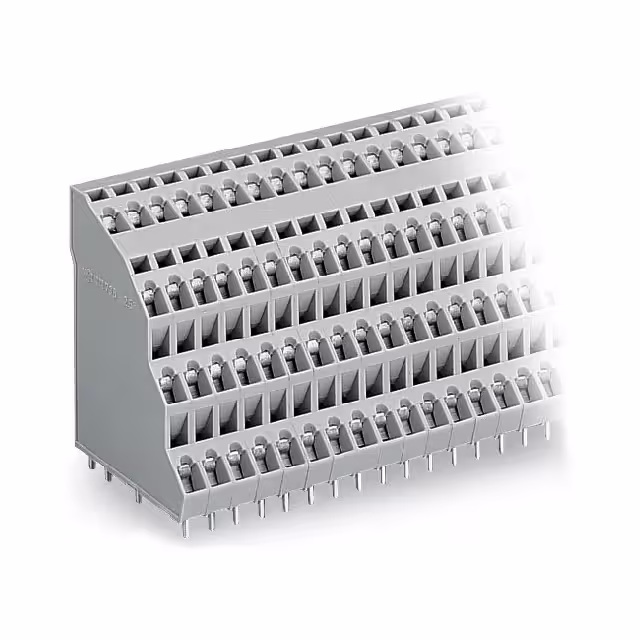

738-104

Manufacturer :

WAGO

Product Category :

Wire to Board

Cross section (inflexible) (min.) :

0.08mm²

Connection Type :

Spring Clamp

ECCN (US) :

EAR99

Length :

21.00mm

RoHS :

yes

EU RoHS :

Compliant

Manufacturer :

Wago

Voltage :

300 V

Inflammability class of insulation material according to with UL94 :

V0

Packaging type :

Other

Positions Per Level :

16

Cross section (inflexible) (max.) :

2.50mm²

Width :

48.20mm

Stripping length (max.) :

6mm

Screw Material - Plating :

-

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Screw Thread :

-

Connection :

Spring-loaded terminal,Print

Approvals :

cURus;CSA

PPAP :

No

Flammability Rating :

UL94 V-0

Type of fastening :

Solder

Pitch :

0.197 (5.00mm)

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Number of Levels :

4

Temperature Range :

-76 to 221 Degrees F

Product Status :

Active

Type :

738-104

No. of rows :

1

Clamp Material - Plating :

Steel - Nickel Plated

Over voltage category :

III

Rated current In :

18

Pin Length :

4 MilliMeters

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Automotive :

No

Operating Temperature :

-60°C ~ 105°C

Color :

Gray

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Package :

Box

Content :

36pc(s)

Composition :

Polyamide

CS :

5mm

Manufacturer part # :

738-104

Housing Color :

Grey

AWG max. :

12

Height :

37.50mm

Torque - Screw :

-

Wire Gauge :

12-28 AWG

Pins per row :

4

Number of Poles :

4

Connectable conductor cross section multi-wired :

0.08 - 2.5

Current :

10 A

Min. stripping length :

18mm

Pollution degree :

2

Industrial packaging :

yes

Housing Material :

Polyamide (PA66), Nylon 6/6

Wire protection :

yes

Mating Orientation :

45° (135°) Angle with Board

Nominal voltage :

320V

Connectable conductor cross section solid-core :

0.08 - 2.5

Features :

+ CAGE CLAMP®

AWG (min.) :

28

Mounting Type :

PCB Mount

Cross section (flexible) (max.) :

2.50mm²

Cross section (flexible) (min.) :

0.08mm²

HTS :

8536.90.40.00

Series :

738

Rated surge voltage :

4
