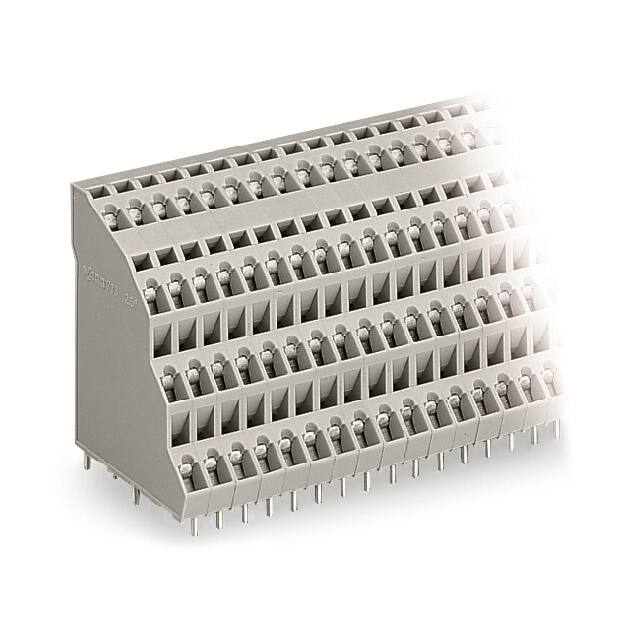

738-212

Manufacturer :

WAGO

Product Category :

Wire to Board

Type :

738-212

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Height :

48.20mm

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Cross section (flexible) (min.) :

0.08mm²

Mating Orientation :

45° (135°) Angle with Board

Screw Thread :

-

Cross section (inflexible) (min.) :

0.08mm²

Housing Material :

Polyamide (PA66), Nylon 6/6

Pitch :

0.197 (5.00mm)

Number of Levels :

4

Operating Temperature :

-60°C ~ 105°C

Manufacturer part # :

738-212

Cross section (flexible) (max.) :

2.50mm²

Min. stripping length :

18mm

Current :

10 A

Screw Material - Plating :

-

Positions Per Level :

12

Connection :

Spring-loaded terminal,Print

Connection Type :

Spring Clamp

Composition :

Polyamide

Industrial packaging :

yes

Mounting Type :

PCB Mount

Nominal voltage :

320V

Torque - Screw :

-

CS :

5mm

Voltage :

300 V

Color :

Gray

Temperature Range :

-76 to 221 Degrees F

Number of Poles :

12

Product Status :

Active

AWG (min.) :

28

Pins per row :

12

Series :

738

Wire protection :

yes

Pin Length :

4 MilliMeters

Approvals :

cURus;CSA

Cross section (inflexible) (max.) :

2.50mm²

RoHS :

yes

No. of rows :

1

AWG max. :

12

Wire Gauge :

12-28 AWG

Width :

61.00mm

Length :

37.50mm

Clamp Material - Plating :

Steel - Nickel Plated

Content :

12pc(s)

Package :

Box

Features :

+ CAGE CLAMP®

Stripping length (max.) :

6mm

Manufacturer :

Wago
