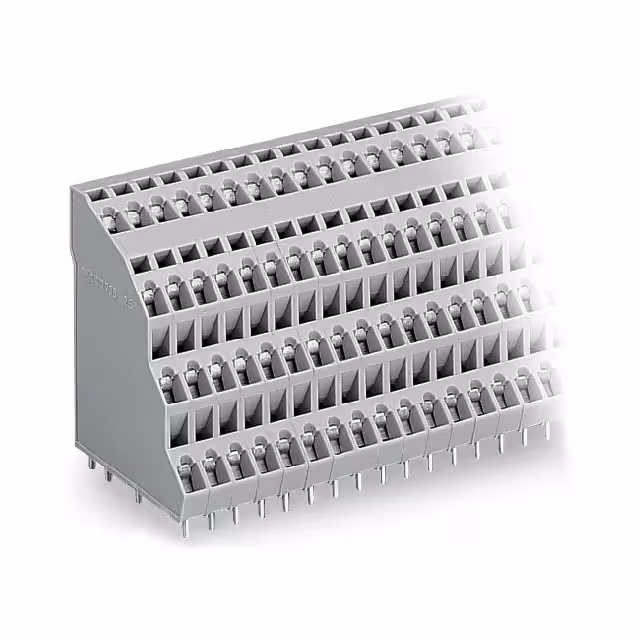

738-112

Manufacturer :

WAGO

Product Category :

Wire to Board

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Connectable conductor cross section solid-core :

0.08 - 2.5

Over voltage category :

III

Torque - Screw :

-

Length :

37.50mm

Product Status :

Active

Mounting Type :

PCB Mount

Pins per row :

12

Color :

Gray

EU RoHS :

Compliant

Inflammability class of insulation material according to with UL94 :

V0

Industrial packaging :

yes

Stripping length (max.) :

6mm

Content :

12pc(s)

Cross section (flexible) (max.) :

2.50mm²

Voltage :

300 V

Wire Gauge :

12-28 AWG

Connectable conductor cross section multi-wired :

0.08 - 2.5

Pin Length :

4 MilliMeters

Pitch :

0.197 (5.00mm)

Package :

Box

Manufacturer part # :

738-112

Wire protection :

yes

AWG max. :

12

Features :

+ CAGE CLAMP®

Screw Material - Plating :

-

Number of Poles :

12

Cross section (flexible) (min.) :

0.08mm²

Type of fastening :

Solder

HTS :

8536.90.40.00

Min. stripping length :

18mm

Manufacturer :

Wago

Connection Type :

Spring Clamp

RoHS :

yes

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Housing Material :

Polyamide (PA66), Nylon 6/6

Nominal voltage :

320V

Composition :

Polyamide

Series :

738

Height :

48.20mm

ECCN (US) :

EAR99

Clamp Material - Plating :

Steel - Nickel Plated

Positions Per Level :

12

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Rated surge voltage :

4

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Cross section (inflexible) (min.) :

0.08mm²

Automotive :

No

Packaging type :

Other

Width :

61.00mm

Type :

738-112

Flammability Rating :

UL94 V-0

Rated current In :

18

Approvals :

cURus;CSA

Current :

10 A

Screw Thread :

-

CS :

5mm

Pollution degree :

2

Operating Temperature :

-60°C ~ 105°C

Temperature Range :

-76 to 221 Degrees F

Mating Orientation :

45° (135°) Angle with Board

Cross section (inflexible) (max.) :

2.50mm²

Connection :

Spring-loaded terminal,Print

Number of Levels :

4

No. of rows :

1

AWG (min.) :

28

PPAP :

No

Housing Color :

Grey
