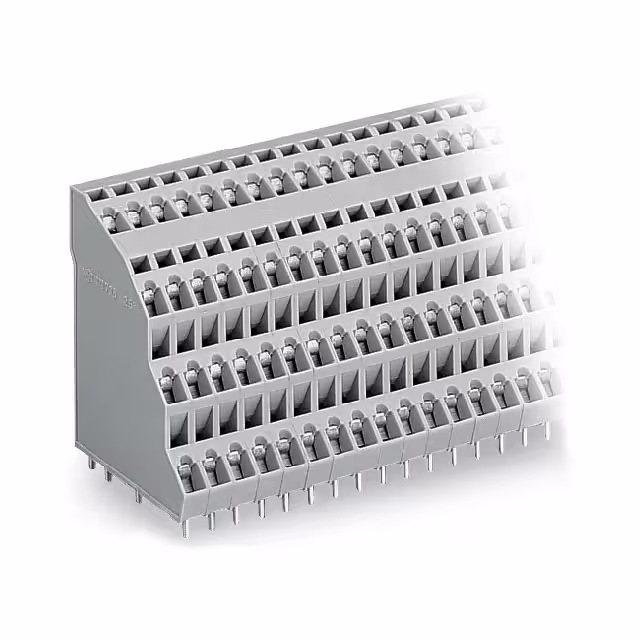

738-106

Manufacturer :

WAGO

Product Category :

Wire to Board

Current :

10 A

Wire protection :

yes

Manufacturer part # :

738-106

Screw Thread :

-

Connection :

Spring-loaded terminal,Print

Type :

738-106

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Number of Levels :

4

HTS :

8536.90.40.00

ECCN (US) :

EAR99

Stripping length (max.) :

6mm

AWG (min.) :

28

CS :

5mm

Nominal voltage :

320V

Screw Material - Plating :

-

EU RoHS :

Compliant

No. of rows :

1

Voltage :

300 V

Clamp Material - Plating :

Steel - Nickel Plated

Flammability Rating :

UL94 V-0

Cross section (flexible) (min.) :

0.08mm²

Number of Rows :

1

RoHS :

Non-Compliant

Industrial packaging :

yes

Torque - Screw :

-

PPAP :

No

Features :

+ CAGE CLAMP®

Positions Per Level :

24

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Product Status :

Active

Housing Color :

Grey

Housing Material :

Polyamide (PA66), Nylon 6/6

Height :

37.50mm

Series :

738

Number of Pins :

24

Automotive :

No

Content :

24pc(s)

Cross section (flexible) (max.) :

2.50mm²

Min. stripping length :

18mm

Package :

Box

Cross section (inflexible) (max.) :

2.50mm²

Pins per row :

6

Cross section (inflexible) (min.) :

0.08mm²

Width :

48.20mm

AWG max. :

12

Wire Gauge :

12-28 AWG

Length :

31.00mm

Pitch :

0.197 (5.00mm)

Operating Temperature :

-60°C ~ 105°C

Color :

Grey

Mounting Type :

Through Hole

Mating Orientation :

45° (135°) Angle with Board

Contact Material :

Copper, Tin
